Volume 7, Issue 3 (7-2022)                   J Res Dent Maxillofac Sci 2022, 7(3): 119-124 | Back to browse issues page

Ethics code: IR.IAU.DENTAL.REC.1395,18
Clinical trials code: IRCT2017020223620N6

XML Print

Download citation:
BibTeX | RIS | EndNote | Medlars | ProCite | Reference Manager | RefWorks
Send citation to:

Esnaashari E, Mirzaei S, Moshari A, Razavi P. Onset of action and duration of efficacy of inferior alveolar nerve block versus single lingual subperi-osteal injection of 4% articaine in mandibular second molars: A randomized clinical trial. J Res Dent Maxillofac Sci 2022; 7 (3) :119-124
URL: http://jrdms.dentaliau.ac.ir/article-1-366-en.html
1- Department of Endodontics, Faculty of Dentistry, Tehran Medical Sciences, Islamic Azad University, Tehran, Iran
2- Faculty of Dentistry, Tehran Medical Sciences, Islamic Azad University, Tehran, Iran
3- Faculty of Dentistry, Tehran Medical Sciences, Islamic Azad University, Tehran, Iran , porazavi1@yahoo.com
Full-Text [PDF 744 kb]   (363 Downloads)     |   Abstract (HTML)  (743 Views)
Full-Text:   (292 Views)

Background and Aim: Achieving adequate pulpal anesthesia could be challenging in mandibular molars. There are some disagreements about the success rate of local infiltration anesthesia with articaine as primary injection. Therefore, the aim of this study was to assess the efficacy of 4% articaine lingual subperiosteal injection as the primary injection for permanent mandibular second molars incomparison with inferior alveolar nerve block (IANB).
Materials and Methods: Fifteen healthy adult volunteers participated in this study. A randomized, split-mouth, single-blind design was used to allocate each side of the mandible in each patient to the test or control group. On the test side, lingual subperiosteal injection with 4% articaine and 1:100,000 epinephrine was performed for the mandibular second molar; whereas, in the control group, an IANB with 2% lidocaine and 1:80,000 epinephrine was administered. Electric pulp testing was done at baseline, and also at 5, 8, 11, 15, 20, 25, 30, 45, 60, 75, and 90 minutes after injection. Statistical analysis was carried out using t-test and Chi-square test.
Results: The success rate of IANB was significantly higher than that of lingual subperiosteal injection (P=0.0001). The difference in the onset of action between the two groups was significant (P<0.05). Anesthesia duration was 61.0±28.0 minutes in IANB group and 10.2±12.4 minutes in lingual subperiosteal injection group, with a significant difference between them (P<0.01).
Conclusion: IANB with 2% lidocaine is preferable to 4% articaine lingual subperiosteal injection due to its superior success rate, faster onset of action, and longer duration of effect.
 Key Words: Anesthesia, Dental; Anesthesia, Local; Mandibular Nerve


Provision of predictable and profound pulpal anesthesia is a necessity for a successful and painless endodontic treatment. A variety of techniques and local anesthetic drugs have been employed for this purpose [1]. Local  anesthetic agents are weak bases, and are commonly synthesized in the form of  hydrochloride salts in order to enhance their water solubility [2]. Inferior alveolar nerve block (IANB) is known to be the preferred method for mandibular molar anesthesia [3]. However, it has some shortcomings, such as a high rate of insufficient depth of anesthesia ranging from 15% to 20% due to lack of  reliable anatomical landmarks and anatomical variations [4]. Furthermore, severe complications including trismus, neurological lesions, hematoma, transient facial paralysis, and transient or permanent inferior alveolar nerve paresthesia have also been reported [4-6]. Hence, these drawbacks led to the development of various alternative techniques such as intra-osseous injections, periodontal ligament anesthesia, and local subperiosteal injection [7]. The local subperiosteal injection technique is typically less complex, has a higher success rate, and lower risk of postoperative complications [8]. Articaine is known as a unique local anesthetic agent since it contains both the ester group and the thiophene ring, which boost its lipid solubility, resulting in better diffusion through the nerve membranes [9].
Buccal or lingual injection of 4% articaine has been shown to be effective as a supplementary injection in many studies [10, 11]. However, there has been controversy regarding the success of 4% articaine subperiosteal injection as the main injection. Narayanan and colleagues [12] reported that buccal/lingual subperiosteal injection of 4% articaine with 1:100,000 epinephrine yielded the same depth of anesthesia as an IANB with 2% lidocaine and 1:80,000 epinephrine.
Another study found that IANB with 2% lidocaine was equivalent to buccal/lingual injection of 4% articaine as the primary injection regarding the onset of action and duration of efficacy for mandibular second molar pulpal anesthesia
[13]. However, to our knowledge, no study has investigated the effectiveness of 4% articaine lingual subperiosteal injection as the primary injection for pulpal anesthesia of mandibular second molars. Therefore, this study aimed to assess the effectiveness of 4 % articaine lingual subperiosteal injection and compare its onset of action and duration of efficacy with the conventional IANB with 2% lidocaine in mandibular second molars.

Materials and Methods
This single-blind, randomized, split-mouth clinical trial was carried out at the Endodontics Department of Islamic Azad University, Dental Branch, Tehran, Iran. The Ethics Committee of the Faculty of Dentistry at Islamic Azad University provided ethical approval for this study IR.IAU.DENTAL.REC.1395.18), and the trial was registered in the Iranian Registry of Clinical Trials (IRCT2017020223620N6). This study also complied with the Consolidated Standards of Reporting Trials. The protocol of this study was explained to eligible patients prior to the injections, and all participants signed informed consent forms. As demonstrated in Figure 1, this study included 15 adult participants between 18 to 60 years who had no underlying systemic disease, or medication intake, and had sound mandibular second molars without any pulpal involvement. Allergy to local anesthetic agents or vasoconstrictors, pregnancy, local abscess, systemic diseases, allergy, and unwillingness or inability to give informed consent were the exclusion criteria. The sample size was calculated based on a power analysis that suggested a sample size of 15 patients or greater for 0.80 statistical power.
Each mandibular quadrant of each participant was randomly assigned to one of the two groups of control for IANB with 1.8 mL of 2% lidocaine (Daropakhsh, Tehran, Iran) and 1:80,000 epinephrine by the direct technique or test group for lingual subperiosteal injection of 1.8mL of 4% articaine plus 1:100,000 epinephrine (Septanest, Saint Maur des Fosses, France) by simple randomization. All injections were administered on the same day by the same operator who was not involved in subsequent assessments, using a standard aspirating dental cartridge syringe with a long (for IANB) or short (for lingual subperiosteal injection) 27-gauge needle (NRK, Tehran, Iran) to avoid any possible errors. Injections were performed at a rate of 1.8 mL per 60 seconds. Blinding of the operator was not possible due to the specific injection technique in each group.
The efficacy of anesthesia was evaluated by electric pulp testing. Prior to any injection, the baseline sensitivity of the respective tooth was assessed using an electric pulp tester (D624 Gentle-Pulse vitality tester; Parkell Inc., Farmingdale, NY, USA). The tip of electric pulp tester was placed over some toothpaste, which served as a contact medium, on the coronal third of the buccal surface of the crown. This test was repeated at 5, 8, 11, 15, 25

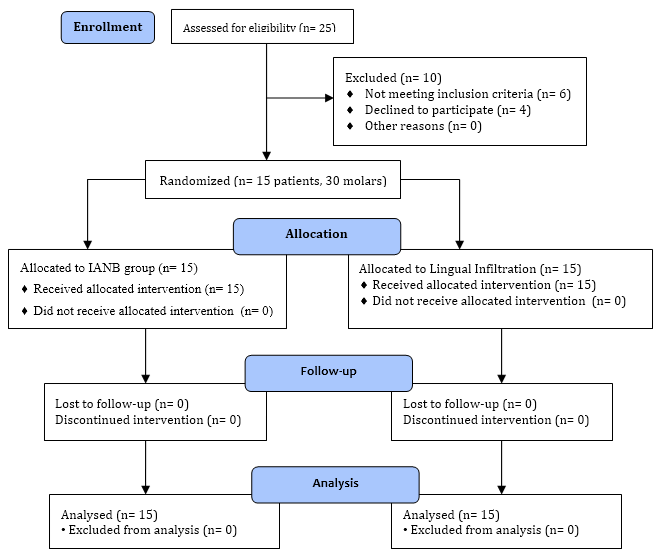

Figure 1. CONSORT flow diagram

30, 45, 60, 70, and 90 minutes after injections. The  patient’s response to gradual increase in the voltage of the electric pulp tester (zero to the maximum in 20 seconds) was reported.
Similarly, the number of no-response episodes at full stimulus was reported. Effective  anesthesia was described as no reaction to the pulp tester's maximal stimulation on two or more consecutive tests.

The results were analyzed using SPSS version 12.0 (SPSS Inc., Chicago, IL, USA) by the Chi-square test and t-test at a significance level of 0.05.


The study was conducted on 15 adult volunteers (30 teeth due to the split-mouth design) with a gender ratio of 53.3% male to 46.7% female, and a mean age of 23.3±3 years.
The results are shown in Table 1. The IANB success rate was 86.7% (13 out of 15 cases), while the success rate was 13.3% (2 out of 15 cases) for the subperiosteal injection. The success rates of the groups differed significantly (P=0.0001).
The mean time of onset of pulpal anesthesia for the IANB was 7.3±2.7 minutes; whereas it

Table 1. Success rate, onset of action, and duration of efficacy of mandibular second molar pulpal anesthesia in IANB and lingual subperiosteal injection groups (n=15)


Administration of a local anesthetic agent has a pivotal role in most dental procedures. Despite the fact that IANB is the most frequent regional mandibular nerve block, it has a high failure rate due to anatomical differences in the location of the mandibular foramen and accessory innervations [14,15]. Therefore, finding an alternative to this technique is of great concern. Articaine, a unique amide local was 15.8 ± 7.8 minutes for the subperiosteal injection. The difference in the time of anesthesia onset was also significant between the two groups (P<0.05; Figure 2).
The mean duration of pulpal anesthesia was 61.0±28.0 minutes in IANB and 10.2 ± 12.4 minutes in subperiosteal injection group. The difference between the two groups in this respect was statistically significant as well (P<0.05; Figure 2)

anesthetic agent, has a thiophene ring instead of a benzene ring, which considerably improves its lipid solubility [9]. This local anesthetic agent has shown significantly higher anesthetic potency and success rate in buccal subperiosteal injection of mandibular molars and premolars compared with lidocaine [4,7]. Although a previous study showed the superiority of IANB over buccal and lingual subperiosteal injections of articaine [13], no controlled trial, to our knowledge, has attempted to compare the anesthetic efficacy of articaine lingual subperiosteal injection alone as the primary injection technique with IANB. This study, therefore, aimed to address this topic.
In terms of success rate and onset of action, the results of the present study showed that IANB was superior to articaine lingual subperiosteal injection as the main injection. These results were in line with those of some previous studies [5, 13]. However, our findings were contrary to those of Jung et al, [16] and Kanaa et al [17]. This inconsistency could be attributed to the proximity of the mental foramen and the buccal side of the mandibular first molar, enhancing the diffusion of anesthetic agent to reach the inferior alveolar nerve.
The current study did not support the findings of Majid and Muhammad [8] which might be due to their subjective definition of pulpal anesthesia. On the other hand, in the present study, similar to the study by Figueiredo et al, [5] absence of response to maximum voltage of electric pulp tester was considered as a sign of successful anesthesia. Use of electric pulp tester is well established in clinical practice and in local anesthetic trials [18-20]. Our findings also differed slightly from those of Monteiro et al, [21] who in spite of reporting the inadequacy of articaine subperiosteal injection as the primary injection, found a higher success rate with articaine than lidocaine. This result may be explained by the fact that all teeth evaluated in the present study were sound, unlike their study.
These findings, while preliminary, may suggest that the traditional use of IANB for mandibular second molars is still the most suitable technique. However, given that our findings are based on a number of limitations, the results of this study should be interpreted with caution. To begin with, the small sample size makes these findings less generalizable. Therefore, in order to confirm these results, further studies with a larger sample size are required. Evaluation of sound teeth may be another cause of error. However, it is worth mentioning that inaccuracy of electric pulp tests in teeth with pulpitis has also been reported [22,23]. Thus, to minimize pathological and anatomical differences, symptomatic teeth were excluded from this study. Another possible downside of our methodology was that the level of discomfort caused by each anesthetic agent was not evaluated in this study despite the significance of this topic.

In summary, notwithstanding some limitations, our study led us to the conclusion that using IANB as a primary injection is more suitable than a lingual subperiosteal injection of articaine in terms of success rate, onset of action, and duration of pulpal anesthesia. Further investigations into this matter are strongly recommended.

1. Ogle OE, Mahjoubi G. Local anesthesia: agents, techniques, and complications. Dent Clin North Am. 2012 Jan;56(1):133-48, ix. [DOI:10.1016/j.cden.2011.08.003] [PMID]
2. Joshi A, Soni HK. Efficacy of Infiltration Anaesthesia of 4% Articaine HCl (buccal) Versus 2% Lignocaine HCl (buccolingual) in Extraction of Mandibular Premolars: A Single Centred, Randomised, Crossover Group Study. J Maxillofac Oral Surg. 2020 Sep;19(3):431-7. [DOI:10.1007/s12663-019-01297-8] [PMID] [PMCID]
3. Jamil FA, Asmael HM, Al-Jarsha MY. The success of using 2% lidocaine in pain removal during extraction of mandibular premolars: a prospective clinical study. BMC Oral Health. 2020 Aug 31;20(1):239. [DOI:10.1186/s12903-020-01228-x] [PMID] [PMCID]
4. Rayati F, Noruziha A, Jabbarian R. Efficacy of buccal infiltration anaesthesia with articaine for extraction of mandibular molars: a clinical trial. Br J Oral Maxillofac Surg. 2018 Sep;56(7):607-10. [DOI:10.1016/j.bjoms.2018.06.012] [PMID]
5. Figueiredo R, Sofos S, Soriano-Pons E, Camps-Font O, Sanmarti-García G, Gay-Escoda C, Valmaseda-Castellón E. Is it possible to extract lower third molars with infiltration anaesthesia techniques using articaine? A double-blind randomized clinical trial. Acta Odontol Scand. 2021 Jan;79(1):1-8. [DOI:10.1080/00016357.2020.1760348] [PMID]
6. Renton T, Adey-Viscuso D, Meechan JG, Yilmaz Z. Trigeminal nerve injuries in relation to the local anaesthesia in mandibular injections. Br Dent J. 2010 Nov;209(9):E15. [DOI:10.1038/sj.bdj.2010.978] [PMID]
7. El-Kholey KE. Anesthetic Efficacy of 4 % Articaine During Extraction of the Mandibular Posterior Teeth by Using Inferior Alveolar Nerve Block and Buccal Infiltration Techniques. J Maxillofac Oral Surg. 2017 Mar;16(1):90-5. [DOI:10.1007/s12663-015-0877-z] [PMID] [PMCID]
8. Majid OW, Muhammad ZA. Effectiveness of Articaine Buccal Infiltration Anesthesia for Mandibular Premolar Extraction: A Randomized, Double-Blind, Placebo-Controlled Clinical Trial. J Oral Maxillofac Surg. 2019 Sep;77(9):1784-9. [DOI:10.1016/j.joms.2019.03.033] [PMID]
9. Zain M, Rehman Khattak SU, Sikandar H, Shah SA, Fayyaz. Comparison of Anaesthetic Efficacy of 4% Articaine Primary Buccal Infiltration Versus 2% Lidocaine Inferior Alveolar Nerve Block in Symptomatic Mandibular First Molar Teeth. J Coll Physicians Surg Pak. 2016 Jan;26(1):4-8.
10. Robertson D, Nusstein J, Reader A, Beck M, McCartney M. The anesthetic efficacy of articaine in buccal infiltration of mandibular posterior teeth. J Am Dent Assoc. 2007 Aug;138(8):1104-12. [DOI:10.14219/jada.archive.2007.0324] [PMID]
11. Foster W, Drum M, Reader A, Beck M. Anesthetic efficacy of buccal and lingual infiltrations of lidocaine following an inferior alveolar nerve block in mandibular posterior teeth. Anesth Prog. 2007 Winter;54(4):163-9. [DOI:10.2344/0003-3006(2007)54[163:AEOBAL]2.0.CO;2]
12. Venkat Narayanan J, Gurram P, Krishnan R, Muthusubramanian V, Sadesh Kannan V. Infiltrative local anesthesia with articaine is equally as effective as inferior alveolar nerve block with lidocaine for the removal of erupted molars. Oral Maxillofac Surg. 2017 Sep;21(3):295-9. [DOI:10.1007/s10006-017-0628-z] [PMID]
13. Esnaashari E, Bakhtiar H, Nazari B, Mirzaei S, Tour-Savadkouhi S. Onset and duration of 2% lidocaine as inferior alveolar nerve block versus buccal/lingual infiltration of 4% articaine in mandibular second molars: Clinical trial study. Journal of Oral Health and Oral Epidemiology. 2018;7(3):113-7.
14. Bataineh AB, Alwarafi MA. Patient's pain perception during mandibular molar extraction with articaine: a comparison study between infiltration and inferior alveolar nerve block. Clin Oral Investig. 2016 Nov;20(8):2241-50. [DOI:10.1007/s00784-016-1712-8] [PMID]
15. Briggs M, Closs JS. A descriptive study of the use of visual analogue scales and verbal rating scales for the assessment of postoperative pain in orthopedic patients. J Pain Symptom Manage. 1999 Dec;18(6):438-46. [DOI:10.1016/S0885-3924(99)00092-5]
16. Jung IY, Kim JH, Kim ES, Lee CY, Lee SJ. An evaluation of buccal infiltrations and inferior alveolar nerve blocks in pulpal anesthesia for mandibular first molars. J Endod. 2008 Jan;34(1):11-3. [DOI:10.1016/j.joen.2007.09.006] [PMID]
17. Kanaa MD, Whitworth JM, Corbett IP, Meechan JG. Articaine and lidocaine mandibular buccal infiltration anesthesia: a prospective randomized double-blind cross-over study. J Endod. 2006 Apr;32(4):296-8. [DOI:10.1016/j.joen.2005.09.016] [PMID]
18. Certosimo AJ, Archer RD. A clinical evaluation of the electric pulp tester as an indicator of local anesthesia. Oper Dent. 1996 Jan-Feb;21(1):25-30.
19. McDaniel KF, Rowe NH, Charbeneau GT. Tissue response to an electric pulp tester. J Prosthet Dent. 1973 Jan;29(1):84-7. [DOI:10.1016/0022-3913(73)90144-3]
20. Dreven LJ, Reader A, Beck M, Meyers WJ, Weaver J. An evaluation of an electric pulp tester as a measure of analgesia in human vital teeth. J Endod. 1987 May;13(5):233-8. [DOI:10.1016/S0099-2399(87)80097-3]
21. Monteiro MR, Groppo FC, Haiter-Neto F, Volpato MC, Almeida JF. 4% articaine buccal infiltration versus 2% lidocaine inferior alveolar nerve block for emergency root canal treatment in mandibular molars with irreversible pulpits: a randomized clinical study. Int Endod J. 2015 Feb;48(2):145-52. [DOI:10.1111/iej.12293] [PMID]
22. Reisman D, Reader A, Nist R, Beck M, Weaver J. Anesthetic efficacy of the supplemental intraosseous injection of 3% mepivacaine in irreversible pulpitis. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 1997 Dec;84(6):676-82. [DOI:10.1016/S1079-2104(97)90372-3]
23. Tortamano IP, Siviero M, Costa CG, Buscariolo IA, Armonia PL. A comparison of the anesthetic efficacy of articaine and lidocaine in patients with irreversible pulpitis. J Endod. 2009 Feb;35(2):165-8. [DOI:10.1016/j.joen.2008.10.020] [PMID]
